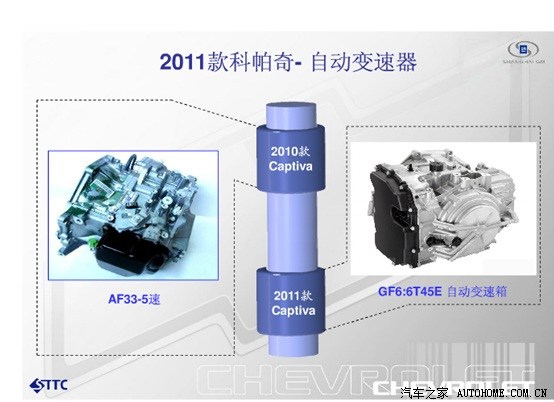

2010 Hydra-Matic 6T45 (MH7)

06/05/2009

Type:

Six speed front-wheel-drive, electronically controlled, automatic overdrive transaxle with an electronically controlled torque converter clutch.

Maximum Engine power ( hp/kW )

215 hp ( 160 kW )

Maximum engine torque:

232 lb-ft (315 Nm)

Maximum gearbox torque:

314 lb-ft (425 Nm) - All gears

Gear ratios:

MH7

First

4.58

Second

2.96

Third:

1.91

Fourth:

1.45

Fifth

1

Sixth

0.75

Reverse:

-2.94

Final Drive Ratio:

2.89

Maximum input speed:

Rev 7000 rpm

1-2 7000 rpm

2-3 7000 rpm

3-4 7000 rpm

4-5 7000 rpm

5-6 7000 rpm

Maximum validated gross vehicle weight:

2200 kg (4850 lbs)

Shifter Posistions:

P, R, N, D, M

Case material:

die cast aluminum

Shift pattern:

Variable Bleed Solenoids

Shift quality:

Variable Bleed Solenoids

Torque converter clutch:

Variable Bleed Solenoid

Converter size:

236mm (reference) (diameter of torque converter turbine)

Fluid type:

DEXRON® VI

Transmission weight:

wet: 84 kg (184.8 lb)

Fluid capacity (approximate):

8.12L (6.86 kg)

Bottom pan removal:

NA

Pressure taps available:

Line Pressure

Transfer design:

Three-axis design, Output Chain

Assembly sites:

GMDAT, Korea; SGM, China, GMNA, SLP Mexico

Applications (MY2010):

Chevrolet Equinox

Buick LaCrosse

GMC Terrain
